CE marked · Class I medical device (EU MDR 2017/745)

From intraoral scan to print-ready setup models

CAD software for preparation of digital dental models. Scroll through one case — every screen below is recorded in DentVIS on the demo case.

Download DentVIS See pricing

macOS Windows iPad

Scroll to start

01New case

Import intraoral scans

Drop STL, PLY or OBJ files and check both jaws.

Step 1 of 16

02Segmentation

Automatic tooth segmentation

Tap each tooth — DentVIS draws outlines for you to check.

You check and correct every outline.

Step 2 of 16

03Segmentation

Long axes

Drag the axis on the model to adjust it; Show roots displays a schematic root along the axis.

Schematic roots for orientation only, not the real roots.

Step 3 of 16

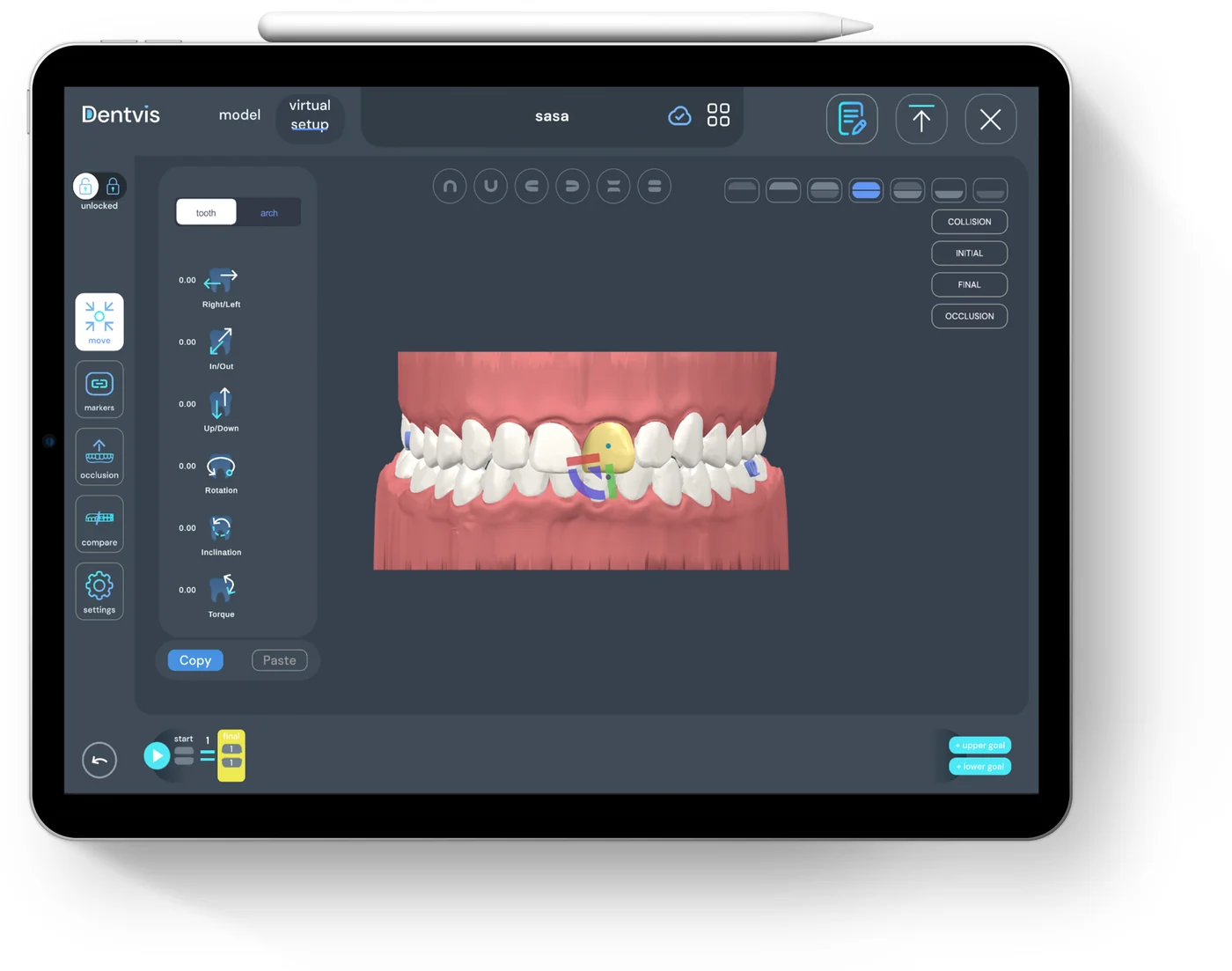

04Virtual Setup

Move teeth step by step

Set each position with the gizmo or exact values.

Step 4 of 16

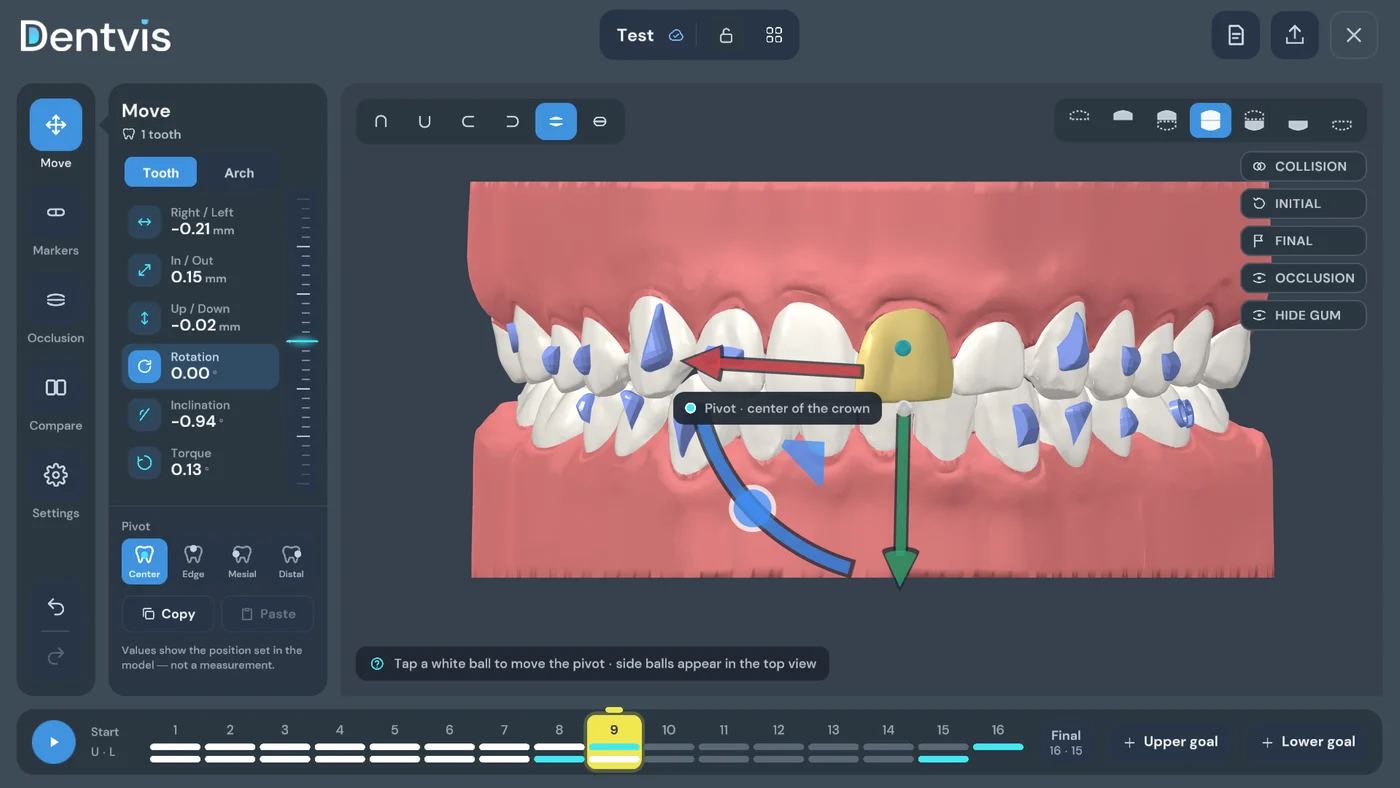

05Timeline

Play all steps

Intermediate steps are interpolated between the goals you set.

Step 5 of 16

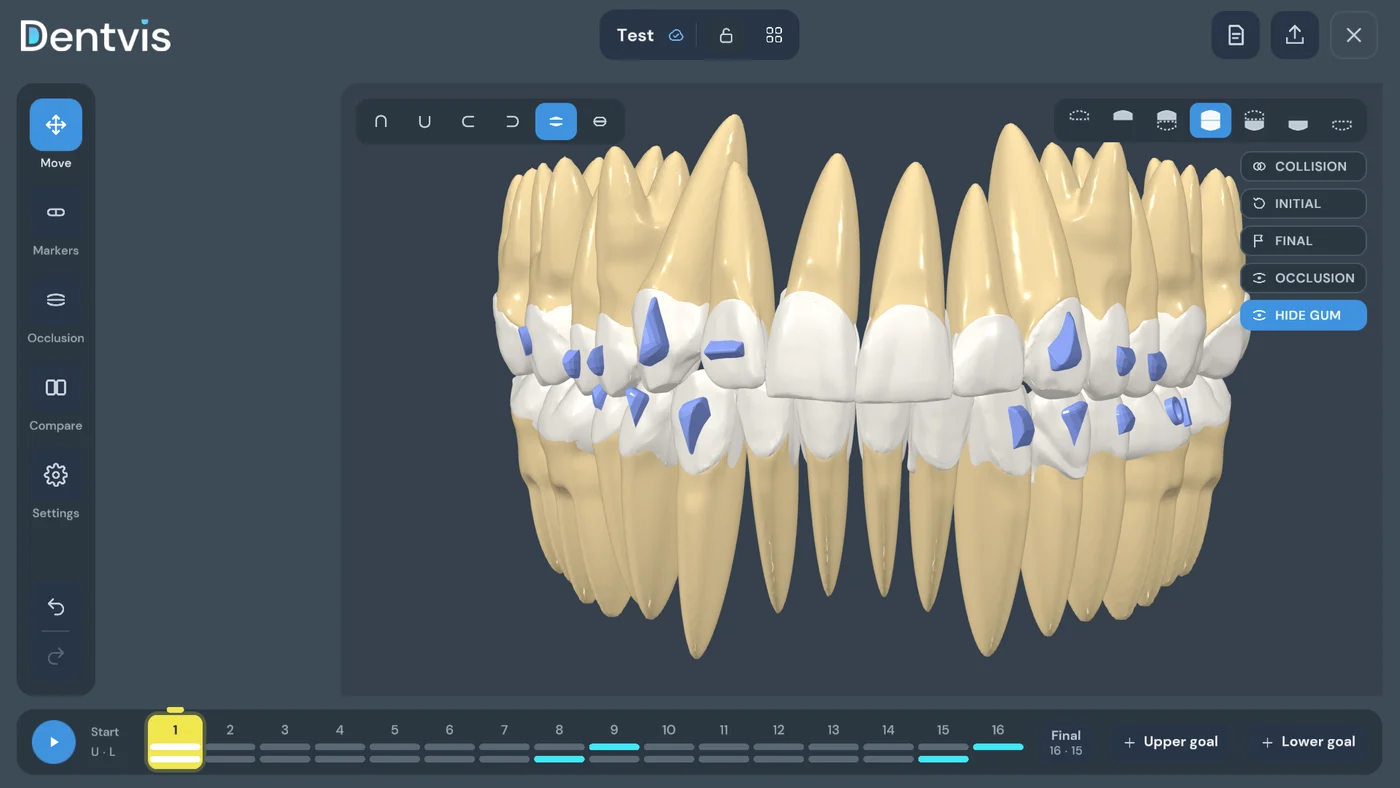

06Virtual Setup

Schematic roots

HIDE GUM hides the gingiva and the base and shows schematic template roots.

For orientation only, not the real roots.

Step 6 of 16

07Movement timing

Stage each tooth movement

Set the steps in which each tooth movement takes place.

Step 7 of 16

08IPR

IPR planning

Enter the IPR amount and step at any contact — in 3D and in the case report.

IPR values are entered by the user — not a measurement.

Step 8 of 16

09Attachments

Attachments from the library

Attachment shapes from the library and movement vectors.

Step 9 of 16

10Review

Collisions and gaps

Contacts, overlaps and gaps in every step — plus the occlusion map.

Values show the position set in the model — not a measurement.

Step 10 of 16

11Compare

Reference models

Reference models (for example an earlier scan) or an arch form as a passive visual overlay.

Compare does not change the case.

Step 11 of 16

12Arch curve

Shape the arch curve

You shape the curve — the distance of each tooth is shown.

Geometric display only — not a recommendation.

Step 12 of 16

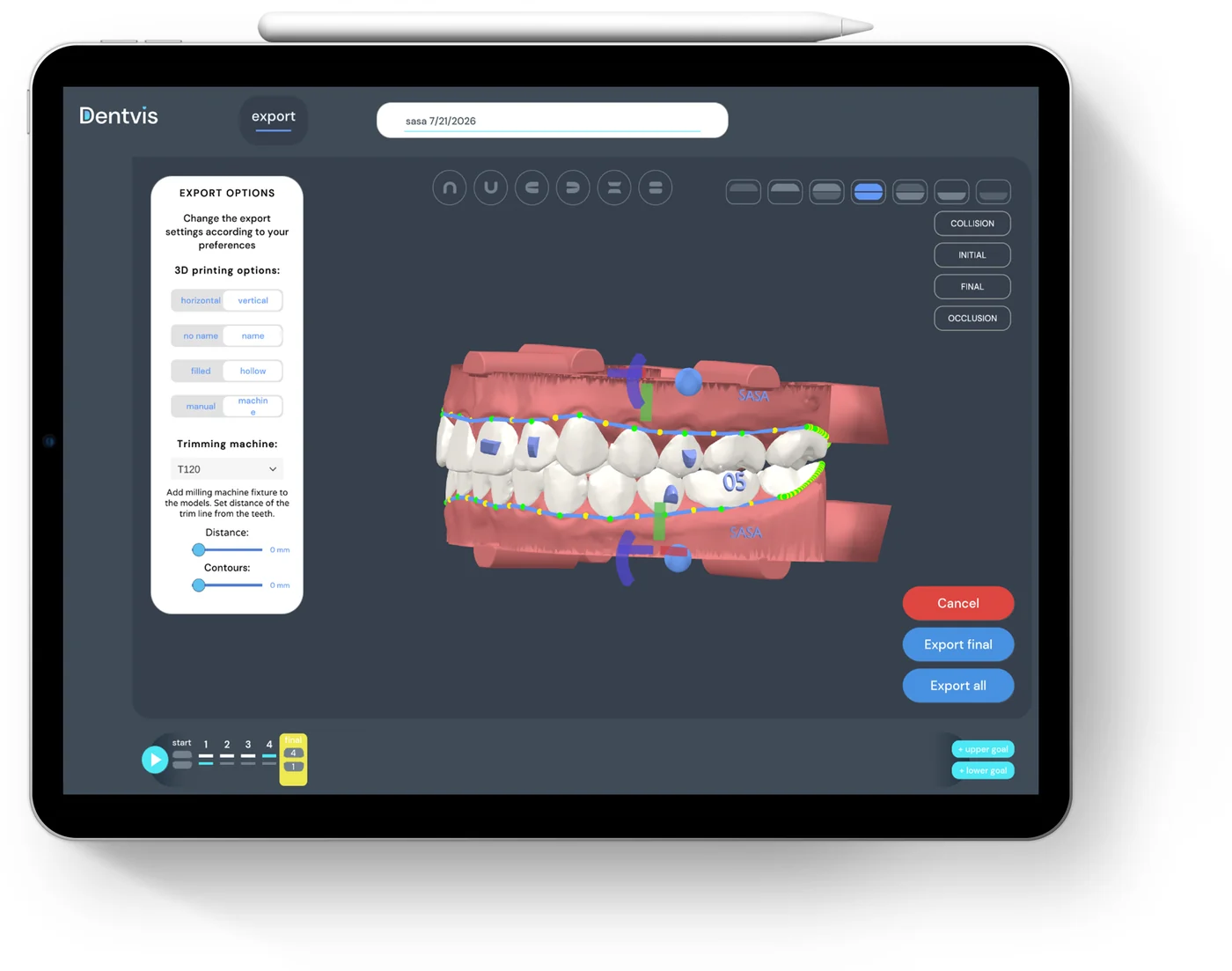

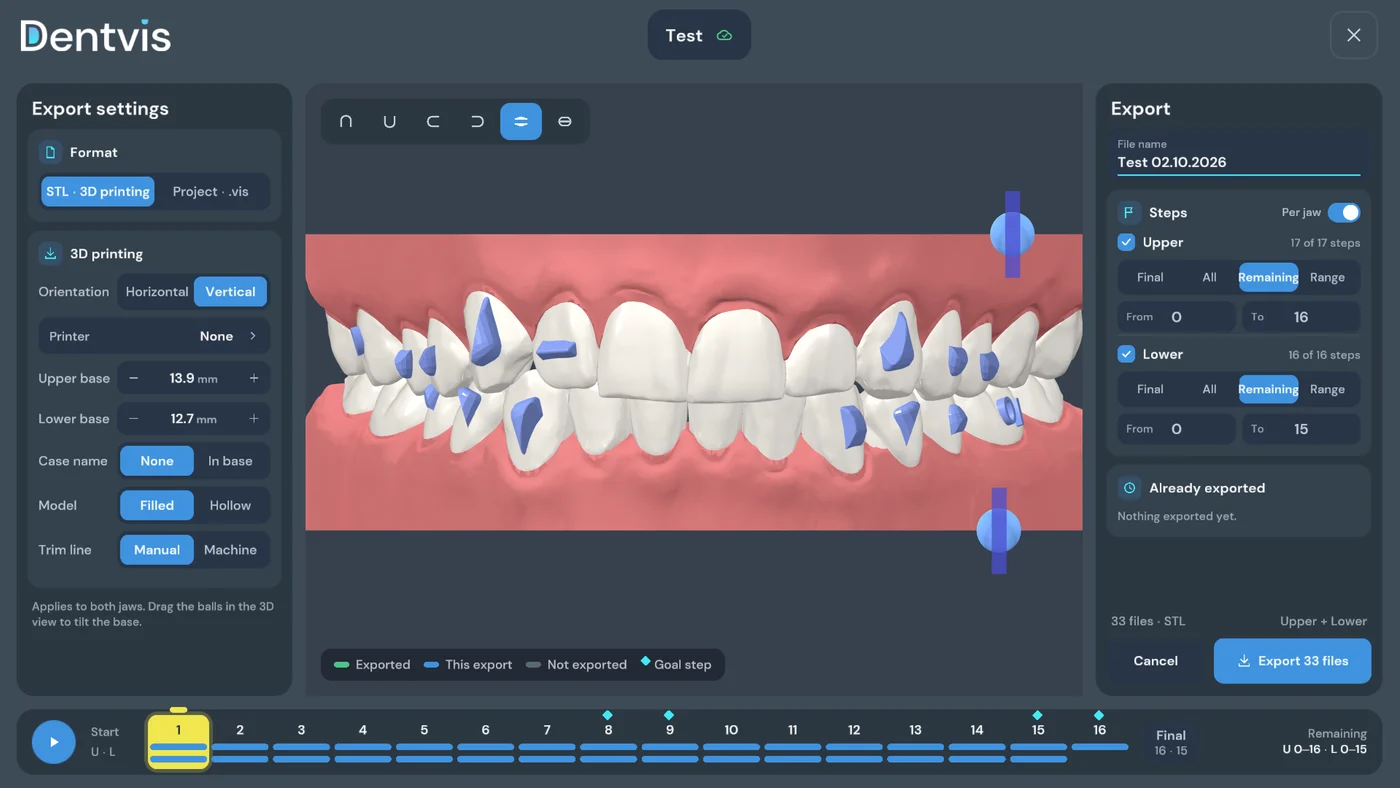

13Export

Export print-ready models

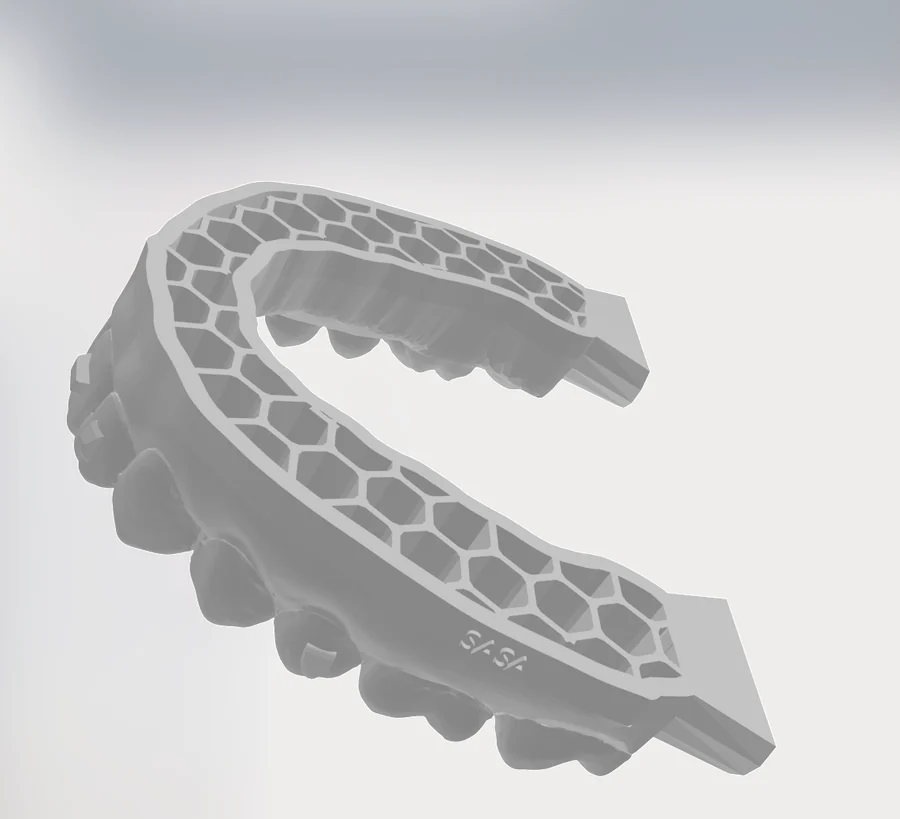

Filled or hollow models, base, supports for upright printing, build plate.

Step 13 of 16

14TT120

Complete TT120 trimming export

Trim line, cutting and dry-run programs in one export.

Before every cut on a trimming machine run the dry-run program of the same step.

Step 14 of 16

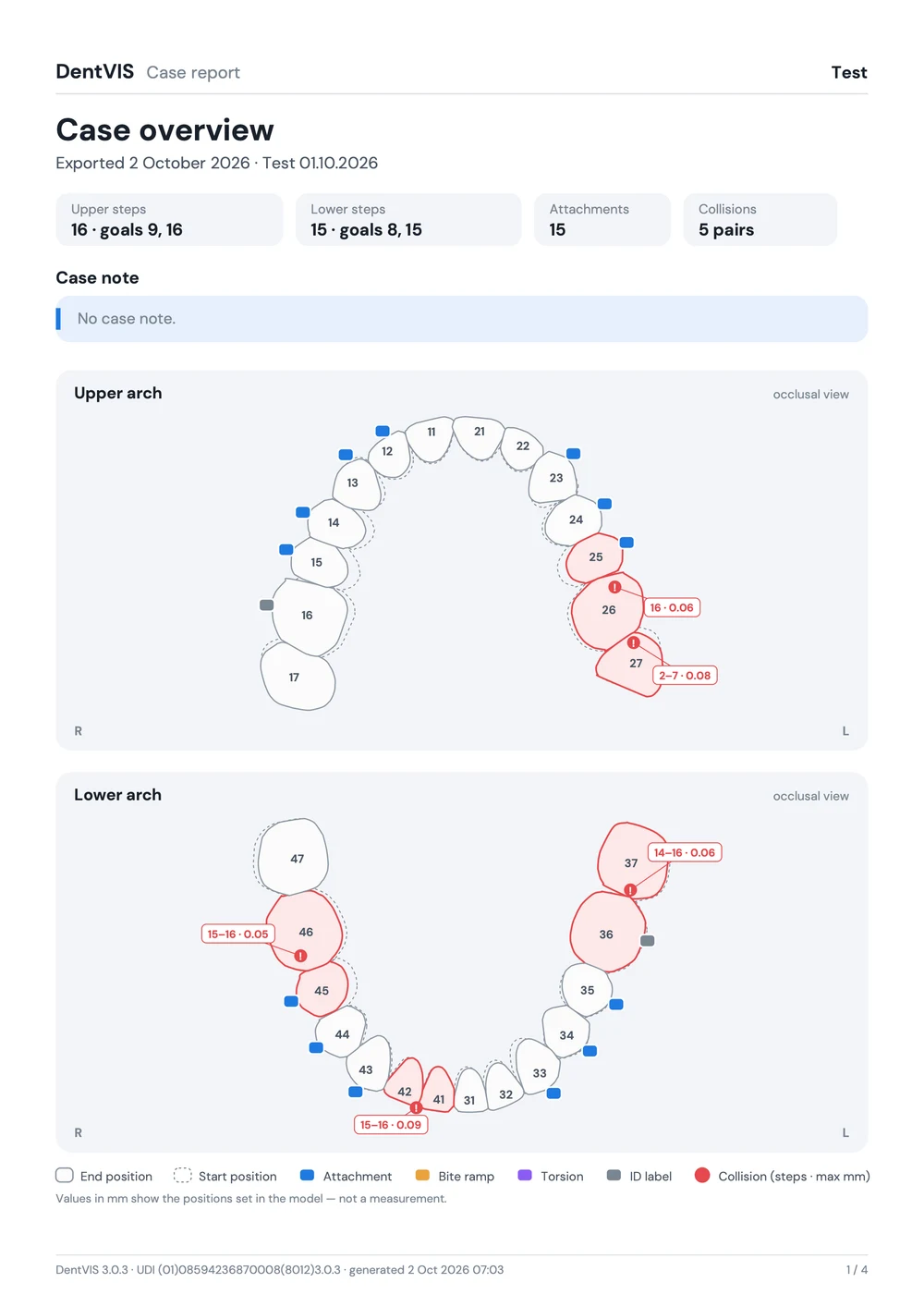

15Report

Case report (PDF)

Arch diagrams, attachments, collisions and the IPR overview.

Step 15 of 16

16Team plan

Sync between devices

With the Team plan, cases sync through the cloud to the other devices of your team. A case is edited on one device at a time — without internet you continue with the local version.

  1. Mac
  2. Windows
  3. iPad

Synchronization is not a backup.

Step 16 of 16

Mac · Windows · iPad

Try the demo

The demo case is part of the application — it opens without an account.

Download DentVIS See pricing

CAD software for preparation of digital dental models · Not for diagnostic use

CE · Class I medical device · For professional use only

CE marked Class I medical device Registered in EUDAMED Developed and manufactured in the EU

Everything you need for digital case preparation

A focused set of CAD tools for your digital workflow — from scan to a Virtual Setup you can review in 3D.

Fast 3D model viewer

Import STL scans of upper and lower jaws and inspect them in a smooth, precise 3D viewer with occlusion visualization tools.

Tooth segmentation

Separate the teeth and refine the margin lines with intuitive editing tools — using a mouse, trackpad or Apple Pencil.

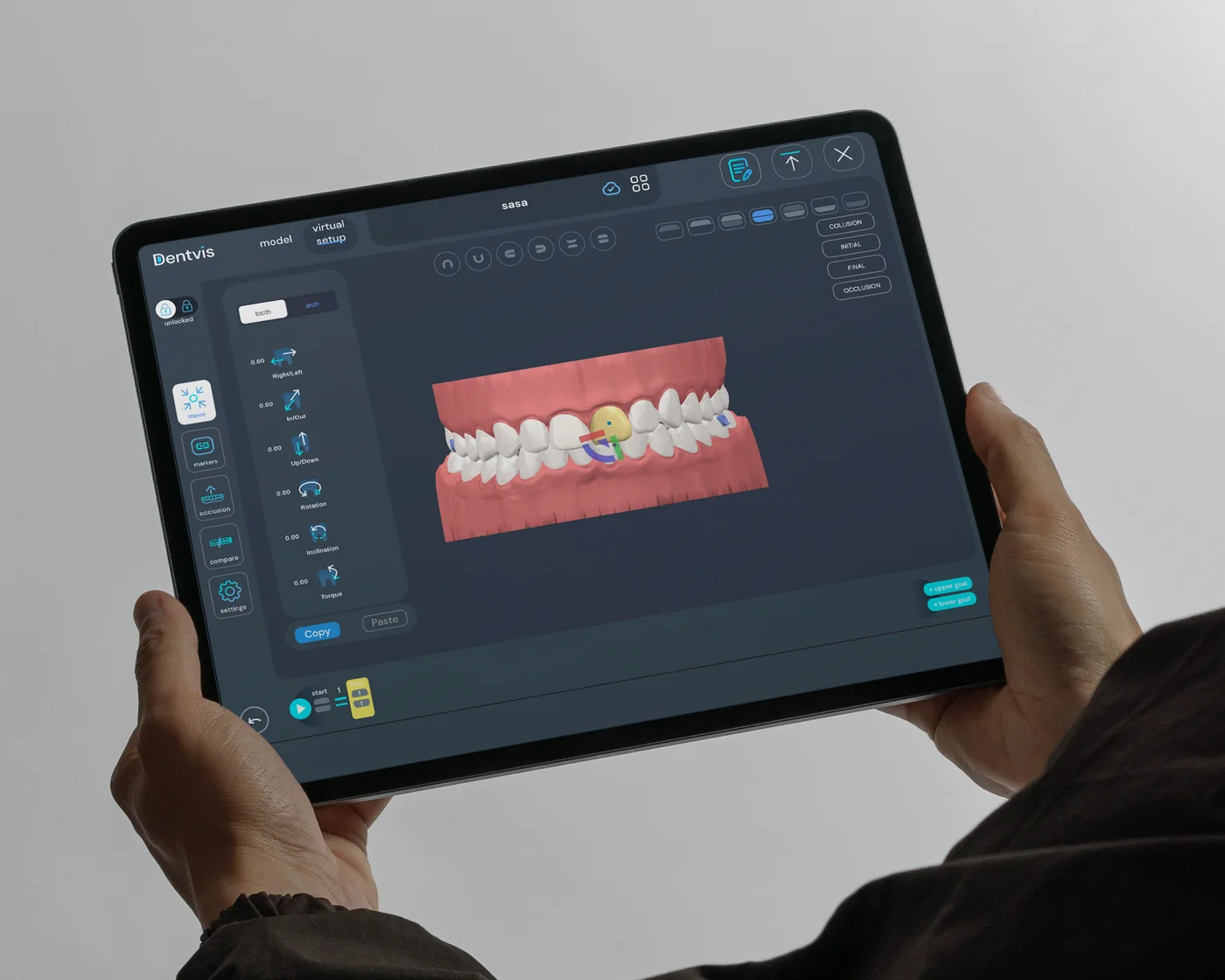

Virtual Setup

Position and align individual teeth to prepare a Virtual Setup as a basis for the design of orthodontic appliances.

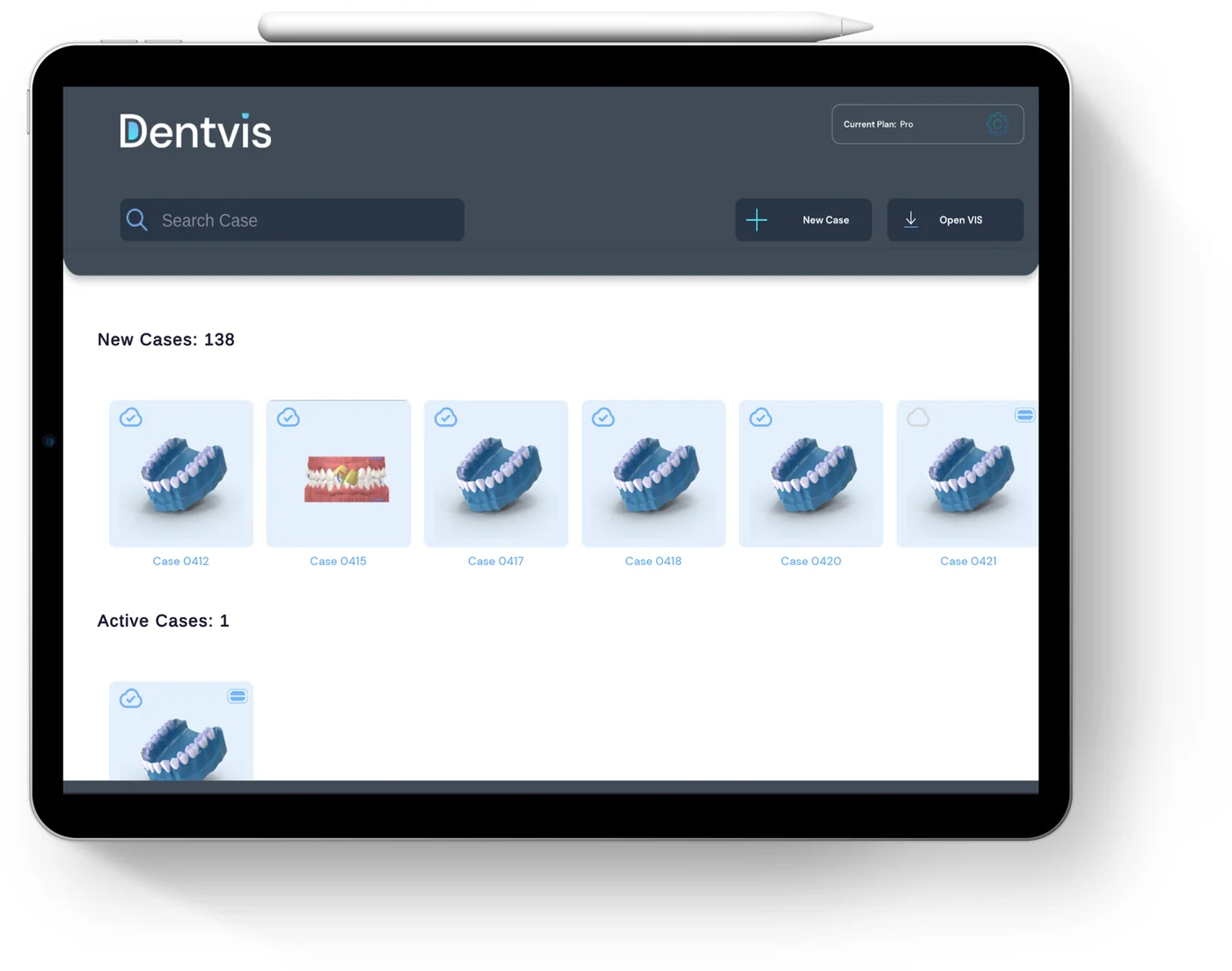

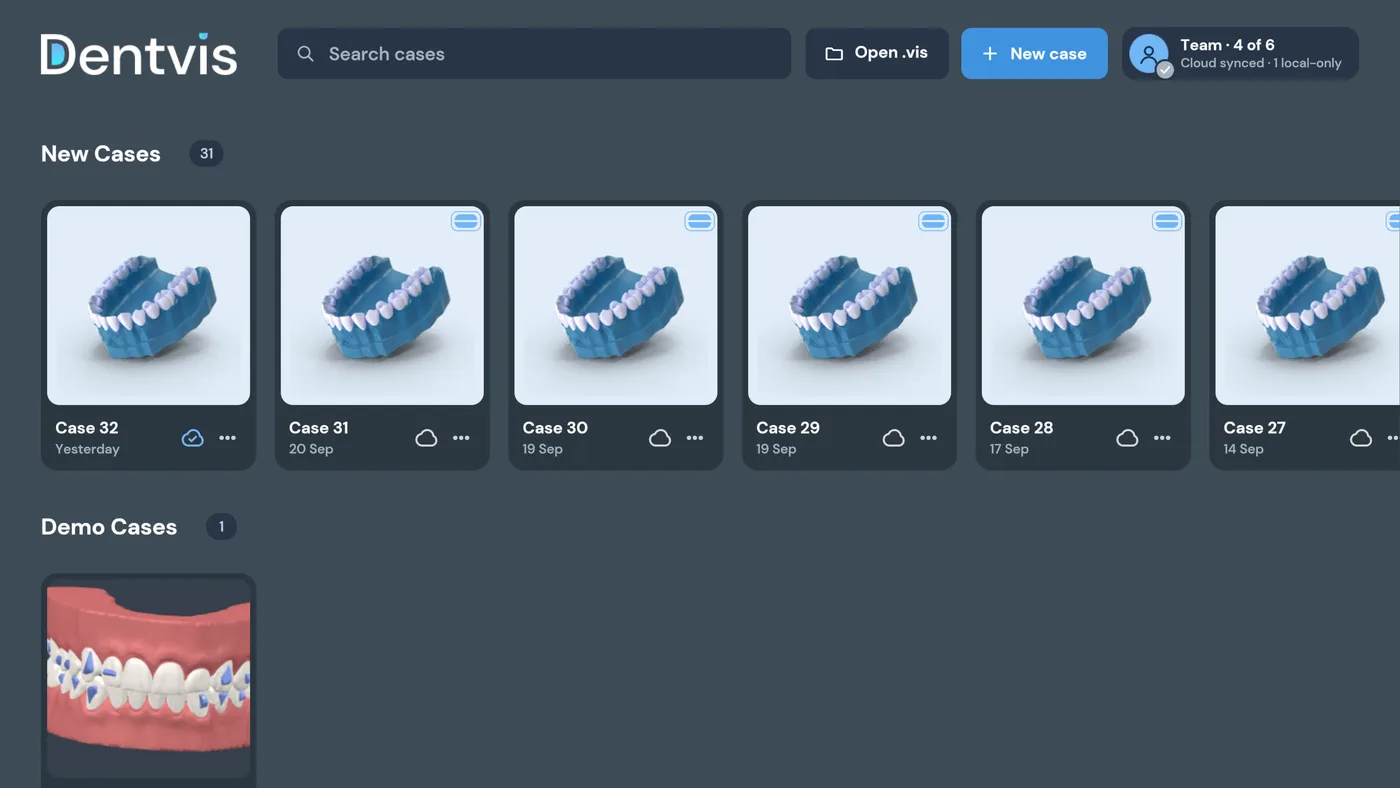

Case management

Keep your cases organized in one place. Projects are stored on your Editor Device; the Team plan adds project synchronization between your Editor Devices.

Export

Export segmented models and Virtual Setups as STL/VIS files for the production of working models — filled or hollow, with a case label and a milling machine fixture.

Cross-platform

Native applications for macOS, Windows and iPad, with Apple Pencil support on iPad. Every Mac, Windows PC or iPad you edit on is one Editor Device.

DentVIS is a Class I medical device in accordance with Regulation (EU) 2017/745 on medical devices (MDR) and is registered in the European database of medical devices (EUDAMED).
